PAN Filters

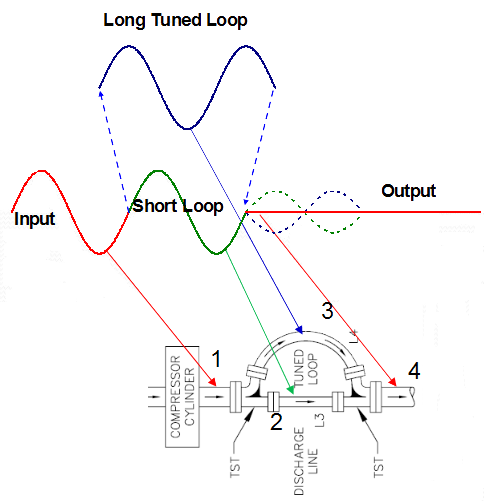

PAN Filter Graphic

In a PAN Filter, the pulsing flow stream is split into 2 equal streams. The pulses in one stream propagate along a longer path (the Tuned Loop). When the 2 streams rejoin, their pulses are out of phase and they cancel each other thereby reducing pulsation in the downstream pipe.

Read more about PAN Applications.

Read about PAN Results.
